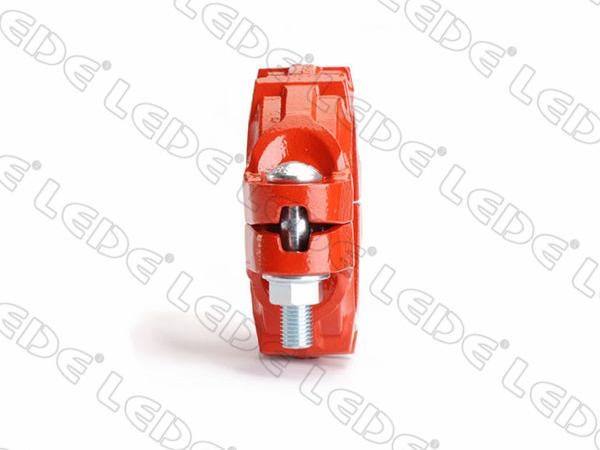

Heavy Duty Grooved Piping System Flexible Coupling
| Product Name | Heavy Duty Grooved Piping System Flexible Coupling |
| Model No. | M2 |
| Specifications | Nominal sizes: 50–300 mm | Ideal for industrial and process piping |
| Category | Grooved Piping System Pipe Couplings |
| Manufacturer | Shandong Lede Machinery Co., Ltd. |
Product Introduction
Heavy duty flexible couplings combine the robustness of a heavy duty housing with the flexibility needed to accommodate pipe movement and thermal expansion in demanding industrial environments.
Features
- ✓Heavy duty housing with flexible joint
- ✓Accommodates thermal expansion and pipe movement
- ✓High-pressure rated
- ✓Ductile iron per ASTM A536
Technical Data
Model: M2
| Nominal Size (mm/in) | Pipe O.D (mm/in) | ΦD (mm) | L (mm) | H (mm) | Bolt (inch/mm) | Working Pressure (Psi) |
|---|---|---|---|---|---|---|
| 65 / 2½" | 76.1 / 3 | 101.2 | 144 | 46 | 1/2×2-3/8 (M12×60) | 500 |
| 80 / 3" | 88.9 / 3.5 | 117.4 | 157 | 46 | 1/2×2-3/8 (M12×60) | 500 |
| 100 / 4" | 108 / 4.25 | 144.4 | 195 | 50 | 1/2×2-3/4 (M12×70) | 500 |
| 100 / 4" | 114.3 / 4.5 | 149.2 | 200 | 50 | 1/2×2-3/4 (M12×70) | 500 |
| 125 / 5" | 133 / 5.25 | 172 | 231 | 50 | 5/8×3-1/8 (M16×80) | 500 |
| 125 / 5" | 139.7 / 5.5 | 180 | 235 | 50 | 5/8×3-1/8 (M16×80) | 500 |
| 125 / 5" | 141.3 / 5.563 | 180.4 | 235 | 50 | 5/8×3-1/8 (M16×80) | 500 |
| 150 / 6" | 159 / 6.25 | 203 | 268 | 50 | 3/4×4-1/3 (M20×110) | 500 |
| 150 / 6" | 165.1 / 6.5 | 207 | 273 | 50 | 3/4×4-1/3 (M20×110) | 500 |
| 150 / 6" | 168.3 / 6.625 | 209.4 | 272 | 50 | 3/4×4-1/3 (M20×110) | 500 |
| 200 / 8" | 219.1 / 8.625 | 276 | 347 | 58 | 3/4×4-1/3 (M20×110) | 500 |
Dimension Drawing
