Grooved Mechanical Tee
| Product Name | Grooved Mechanical Tee |
| Model No. | XGQT04 |
| Specifications | Main pipe sizes: 50–300 mm | Branch sizes: 25–100 mm |
| Category | Mechanical Joint Fittings |
| Manufacturer | Shandong Lede Machinery Co., Ltd. |
Product Introduction
The grooved mechanical tee enables branch connections in grooved piping systems without the need for welding or threading the main pipe run. It clamps directly onto the grooved pipe, significantly reducing installation time.
Features
- ✓No welding or threading required
- ✓Ductile iron construction
- ✓UL Listed and FM Approved
- ✓Reduces installation time significantly
Technical Data
Model: XGQT04
| Nominal Size (mm/in) | Pipe O.D (mm) | A (mm) | L (mm) | H (mm) | Bolt/Nut | Hole Dia (mm) | Working Pressure (psi) |
|---|---|---|---|---|---|---|---|
| 50×25 | 60.3 | 120 | 64 | 70 | 3/8×2 (M10×50) | φ38 | 300 |
| 50×32 | 60.3 | 120 | 72 | 70 | 3/8×2 (M10×50) | φ46 | 300 |
| 50×40 | 60.3 | 120 | 72 | 70 | 3/8×2 (M10×50) | φ46 | 300 |
| 65×25 | 73 | 139 | 64 | 73 | 3/8×2-1/8 (M10×55) | φ38 | 300 |
| 65×32 | 73 | 139 | 72 | 73 | 3/8×2-1/8 (M10×55) | φ46 | 300 |
| 65×40 | 73 | 139 | 79 | 75 | 3/8×2-1/8 (M10×55) | φ53 | 300 |
| 65×25 | 76.1 | 139 | 64 | 73 | 3/8×2-1/8 (M10×55) | φ38 | 300 |
| 65×32 | 76.1 | 139 | 72 | 73 | 3/8×2-1/8 (M10×55) | φ46 | 300 |
| 65×40 | 76.1 | 139 | 79 | 75 | 3/8×2-1/8 (M10×55) | φ53 | 300 |
| 80×25 | 88.9 | 155 | 64 | 82 | 3/8×2-1/8 (M10×55) | φ38 | 300 |
| 80×32 | 88.9 | 155 | 72 | 82 | 3/8×2-1/8 (M10×55) | φ46 | 300 |
| 80×40 | 88.9 | 155 | 79 | 82 | 3/8×2-1/8 (M10×55) | φ53 | 300 |
| 80×50 | 88.9 | 155 | 90 | 82 | 3/8×2-1/8 (M10×55) | φ64 | 300 |
| 100×50 | 108 | 172 | 90 | 92.5 | 1/2×2-5/8 (M12×65) | φ64 | 300 |
| 100×65 | 108 | 172 | — | — | 1/2×2-5/8 (M12×65) | φ80 | 300 |
| 100×25 | 114.3 | 181 | 64 | 95.5 | 1/2×2-5/8 (M12×65) | φ38 | 300 |
| 100×32 | 114.3 | 181 | 72 | 95.5 | 1/2×2-5/8 (M12×65) | φ46 | 300 |
| 100×40 | 114.3 | 181 | 79 | 95.5 | 1/2×2-5/8 (M12×65) | φ53 | 300 |
| 100×50 | 114.3 | 181 | 90 | 95.5 | 1/2×2-5/8 (M12×65) | φ64 | 300 |
| 100×65 | 114.3 | 181 | — | — | 1/2×2-5/8 (M12×65) | φ70 | 300 |
| 100×80 | 114.3 | 181 | — | — | 1/2×2-5/8 (M12×65) | φ89 | 300 |
| 125×40 | 133 | 205 | 90 | 105.5 | 1/2×3 (M12×75) | φ53 | 300 |
| 125×50 | 133 | 205 | 100 | 105.5 | 1/2×3 (M12×75) | φ64 | 300 |
| 125×65 | 133 | 205 | 117 | 105.5 | 1/2×3 (M12×75) | φ80 | 300 |
| 125×80 | 133 | 205 | 129 | 105.5 | 1/2×3 (M12×75) | φ92 | 300 |
| 125×40 | 139.7 | 212 | 90 | 109 | 1/2×3 (M12×75) | φ53 | 300 |
| 125×50 | 139.7 | 212 | 100 | 109 | 1/2×3 (M12×75) | φ64 | 300 |
| 125×65 | 139.7 | 212 | — | — | 1/2×3 (M12×75) | φ70 | 300 |
| 125×80 | 139.7 | 212 | — | — | 1/2×3 (M12×75) | φ89 | 300 |
| 125×100 | 139.7 | 212 | — | — | 1/2×3 (M12×75) | φ114 | 300 |
| 125×40 | 141.3 | 212 | 90 | 109 | 1/2×3 (M12×75) | φ53 | 300 |
| 125×50 | 141.3 | 212 | 100 | 109 | 1/2×3 (M12×75) | φ64 | 300 |
| 125×80 | 141.3 | 212 | — | — | 1/2×3 (M12×75) | φ89 | 300 |
| 125×100 | 141.3 | 212 | — | — | 1/2×3 (M12×75) | φ111 | 300 |
| 150×50 | 159 | 233 | 100 | 118 | 9/16×3 (M14×75) | φ64 | 300 |
| 150×65 | 159 | 233 | — | — | 9/16×3 (M14×75) | φ80 | 300 |
| 150×80 | 159 | 233 | — | — | 9/16×3 (M14×75) | φ92 | 300 |
| 150×100 | 159 | 233 | 143 | 119.5 | 9/16×3 (M14×75) | φ104 | 300 |
| 150×50 | 165.1 | 239 | 100 | 121 | 9/16×3 (M14×75) | φ64 | 300 |
| 150×65 | 165.1 | 248 | — | — | 9/16×3 (M14×75) | φ80 | 300 |
| 150×80 | 165.1 | 239 | — | — | 9/16×3 (M14×75) | φ92 | 300 |
| 150×100 | 165.1 | 239 | 143 | 122 | 9/16×3 (M14×75) | φ104 | 300 |
| 150×32 | 168.3 | 248 | 72 | 121 | 5/8×3-1/3 (M16×85) | φ46 | 300 |
| 150×40 | 168.3 | 248 | 79 | 121 | 5/8×3-1/3 (M16×85) | φ53 | 300 |
| 150×50 | 168.3 | 239 | 100 | 121 | 9/16×3-1/3 (M14×85) | φ64 | 300 |
| 150×65 | 168.3 | 239 | — | — | 9/16×3-1/3 (M14×85) | φ70 | 300 |
| 150×80 | 168.3 | 239 | — | — | 9/16×3-1/3 (M14×85) | φ89 | 300 |
| 150×100 | 168.3 | 239 | — | — | 9/16×3-1/3 (M14×85) | φ114 | 300 |
| 200×50 | 219.1 | 311 | 100 | 147.5 | 5/8×3-1/3 (2-M16×85) | φ64 | 300 |
| 200×65 | 219.1 | 311 | — | — | 5/8×3-1/3 (2-M16×85) | φ70 | 300 |
| 200×80 | 219.1 | 311 | — | — | 5/8×3-1/3 (2-M16×85) | φ89 | 300 |
| 200×100 | 219.1 | 311 | 143 | 148.5 | 5/8×3-1/3 (2-M16×85) | φ104 | 300 |
| 200×100 | 219.1 | 311 | — | — | 5/8×3-1/3 (2-M16×85) | φ114 | 300 |
| 200×125 | 219.1 | 311 | 168 | 149 | 5/8×3-1/3 (2-M16×85) | φ129 | 300 |
| 200×125 | 219.1 | 311 | 178 | 149 | 5/8×3-1/3 (2-M16×85) | φ135 | 300 |
| 250×100 | 273 | 379 | — | — | 3/4×3-1/2 (M20×90) | φ104 | 300 |
| 250×150 | 273 | 379 | 197.6 | 178 | 3/4×3-1/2 (M20×90) | φ155 | 300 |

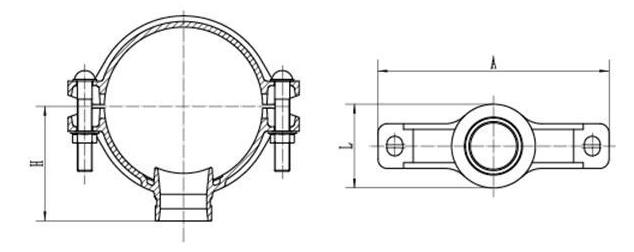

Dimension Drawing
