U-Bolt Mechanical Tee
| Product Name | U-Bolt Mechanical Tee |
| Specifications | Compatible with standard pipe ODs | Branch: 25–100 mm |
| Category | Mechanical Joint Fittings |
| Manufacturer | Shandong Lede Machinery Co., Ltd. |
Product Introduction
The U-bolt mechanical tee uses a U-bolt clamping mechanism for secure attachment to the main pipe without grooving. It provides a versatile branch connection option where grooving equipment is unavailable.
Features
- ✓No grooving of main pipe required
- ✓U-bolt clamping mechanism
- ✓Cost-effective installation
- ✓Ductile iron branch body
Technical Data
| Nominal Size (mm/in) | Pipe Hole Dia (mm) | A (mm) | L (mm) | H (mm) | U-Bolt Size | Working Pressure (psi) |
|---|---|---|---|---|---|---|
| 25×15 | 25 | 46 | 74 | 44 | M8×44 | 300 |
| 25×20 | 25 | 46 | 74 | 44 | M8×44 | 300 |
| 32×15 | 30 | 53 | 89 | 56 | M10×78 | 300 |
| 32×20 | 30 | 53 | 89 | 56 | M10×78 | 300 |
| 32×25 | 30 | 56 | 89 | 56 | M10×78 | 300 |
| 40×15 | 30 | 55 | 89 | 56 | M10×78 | 300 |
| 40×20 | 30 | 55 | 89 | 56 | M10×78 | 300 |
| 40×25 | 30 | 58 | 89 | 56 | M10×78 | 300 |
| 50×15 | 30 | 64 | 98 | 56 | M10×92 | 300 |
| 50×20 | 30 | 64 | 98 | 56 | M10×92 | 300 |
| 50×25 | 30 | 67 | 98 | 56 | M10×92 | 300 |
| 65×15 | 30 | 69 | 111 | 56 | M10×108 | 300 |
| 65×20 | 30 | 69 | 111 | 56 | M10×108 | 300 |
| 65×25 | 30 | 72 | 111 | 56 | M10×108 | 300 |
| 80×25 | 30 | 80.5 | 128 | 56 | M10×135 | 300 |

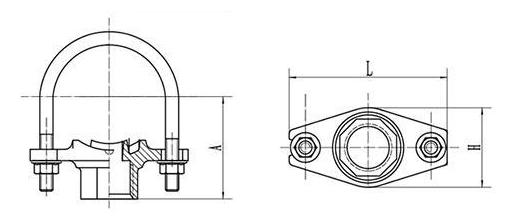

Dimension Drawing
