PN16 Grooved Flange Adapter
| Product Name | PN16 Grooved Flange Adapter |
| Model No. | XGQT08 |
| Specifications | Sizes: DN50–DN300 | PN16 standard |
| Category | Grooved Pipe Flange |
| Manufacturer | Shandong Lede Machinery Co., Ltd. |
Product Introduction
The PN16 grooved flange adapter provides a transition from a grooved end to a PN16 flanged connection, allowing integration of grooved systems with flanged valves and equipment.
Features
- ✓Grooved to PN16 flange transition
- ✓Ductile iron body
- ✓Standard bolt circle
Technical Data
Model: XGQT08
| Parameter | Specification |
|---|---|
| Nominal Diameter | DN50–DN300 (2"–12") |
| Nominal Pressure | PN16 / ANSI 125–150 |
| Body Material | Ductile Iron (ASTM A536) |
| Grooved End | AWWA C606 compliant |
| Flange Face | Flat face (FF) or Raised face (RF) |
| Approvals | UL Listed / FM Approved |

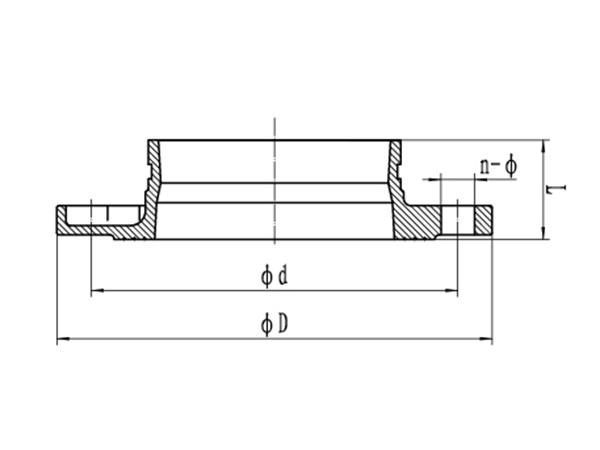

Dimension Drawing
PN16 Grooved Flange Adapter (XGQT08) — Dimension Data, DN50–300
| Nominal Size (mm/in) | Pipe O.D (mm/in) | ΦD (mm) | Φd (mm) | L (mm) | n-φ | Pressure (Psi) |
|---|---|---|---|---|---|---|
| 50 / 2 | 60.30 / 2.38 | 165 | 125 | 60 | 4-φ18 | 230 |
| 65 / 2½ | 73.00 / 2.88 | 185 | 145 | 60 | 4-φ18 | 230 |
| 65 / 3 | 76.10 / 3.00 | 185 | 145 | 60 | 4-φ18 | 230 |
| 80 / 3½ | 88.90 / 3.50 | 200 | 160 | 60 | 8-φ18 | 230 |
| 100 / 4¼ | 108.00 / 4.25 | 220 | 180 | 60 | 8-φ18 | 230 |
| 100 / 4½ | 114.30 / 4.50 | 220 | 180 | 60 | 8-φ18 | 230 |
| 125 / 5¼ | 133.00 / 5.25 | 250 | 210 | 65 | 8-φ18 | 230 |
| 125 / 5½ | 139.70 / 5.50 | 250 | 210 | 65 | 8-φ18 | 230 |
| 125 / 5.563 | 141.30 / 5.56 | 250 | 210 | 65 | 8-φ18 | 230 |
| 150 / 6¼ | 159.00 / 6.25 | 285 | 240 | 65 | 8-φ22 | 230 |
| 150 / 6½ | 165.10 / 6.50 | 285 | 240 | 65 | 8-φ22 | 230 |
| 150 / 6.625 | 168.30 / 6.63 | 285 | 240 | 65 | 8-φ22 | 230 |
| 200 / 8.625 | 219.10 / 8.63 | 340 | 295 | 70 | 12-φ22 | 230 |
| 250 / 10.75 | 273.00 / 10.75 | 405 | 355 | 72 | 12-φ26 | 230 |
| 300 / 12.75 | 323.90 / 12.75 | 460 | 410 | 72 | 12-φ26 | 230 |
