45 Degree Grooved Pipe Elbow
| Product Name | 45 Degree Grooved Pipe Elbow |
| Model No. | XGQT011 |
| Specifications | Sizes: 25–300 mm |
| Category | Pipe Fittings |
| Manufacturer | Shandong Lede Machinery Co., Ltd. |
Product Introduction
The 45° grooved pipe elbow provides a standard 45° directional change, commonly used in fire protection and HVAC piping systems.
Features
- ✓45° bend angle
- ✓Both ends grooved
- ✓UL Listed / FM Approved
Technical Data
Model: XGQT011
| Nominal Size (mm/in) | Pipe O.D (mm/in) | L Short (mm) | L Standard (mm) | Working Pressure (psi) |
|---|---|---|---|---|
| 25 / 1 | 33.7 / 1.327 | 45 | — | 300 |
| 32 / 1¼ | 42.4 / 1.669 | 45 | — | 300 |
| 40 / 1½ | 48.3 / 1.9 | 45 | — | 300 |
| 50 / 2 | 60.3 / 2.375 | 51 | — | 300 |
| 65 / 2½ | 73 / 2.875 | 65 | — | 300 |
| 65 / 2½ | 76.1 / 3 | 48 | 62 | 300 |
| 80 / 3 | 88.9 / 3.5 | 53 | 70 | 300 |
| 100 / 4 | 108 / 4.25 | 60 | 76 | 300 |
| 100 / 4 | 114.3 / 4.5 | 60 | 76 | 300 |
| 125 / 5 | 133 / 5.25 | 68 | 83 | 300 |
| 125 / 5 | 139.7 / 5.5 | 68 | 83 | 300 |
| 125 / 5 | 141.3 / 5.563 | 68 | 83 | 300 |
| 150 / 6 | 159 / 6.25 | 75.5 | 89 | 300 |
| 150 / 6 | 165.1 / 6.5 | 75.5 | 89 | 300 |
| 150 / 6 | 168.3 / 6.625 | 75.5 | 89 | 300 |
| 200 / 8 | 219.1 / 8.625 | 95 | 108 | 300 |
| 250 / 10 | 273 / 10.75 | 112 | 121 | 300 |
| 300 / 12 | 323.9 / 12.75 | 135 | — | 300 |

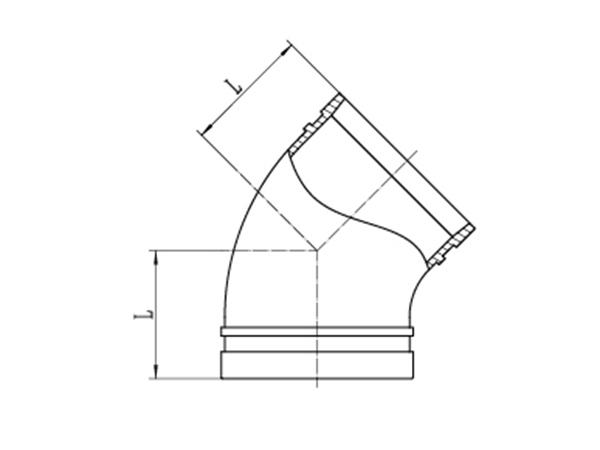

Dimension Drawing
