90 Degree Grooved Reducing Pipe Elbow
| Product Name | 90 Degree Grooved Reducing Pipe Elbow |
| Model No. | XGQT014 |
| Specifications | Available in common reducing combinations |
| Category | Pipe Fittings |
| Manufacturer | Shandong Lede Machinery Co., Ltd. |
Product Introduction
The 90° reducing elbow combines a right-angle directional change with a pipe size reduction, eliminating the need for a separate elbow and reducer.
Features
- ✓90° bend with size reduction
- ✓Eliminates need for elbow + reducer
- ✓Grooved ends
- ✓Ductile iron
Technical Data
Model: XGQT014
| Nominal Size (mm/in) | L (mm) | Working Pressure (psi) |
|---|---|---|
| 32×15 / 1¼×½ | 61 | 300 |
| 32×20 / 1¼×¾ | 61 | 300 |
| 32×25 / 1¼×1 | 61 | 300 |
| 40×15 / 1½×½ | 64 | 300 |
| 40×20 / 1½×¾ | 64 | 300 |
| 40×25 / 1½×1 | 64 | 300 |
| 50×15 / 2×½ | 70 | 300 |
| 50×20 / 2×¾ | 70 | 300 |
| 50×25 / 2×1 | 70 | 300 |
| 65×15 / 2½×½ | 76 | 300 |
| 65×20 / 2½×¾ | 76 | 300 |
| 65×25 / 2½×1 | 76 | 300 |

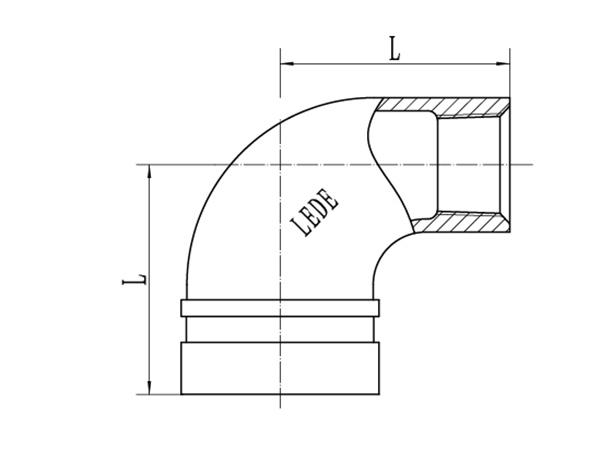

Dimension Drawing
