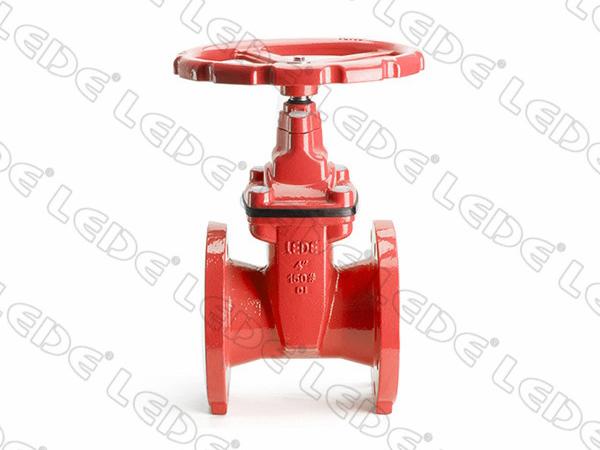

Fire Protection NRS Flanged Gate Valve

Product Name	Fire Protection NRS Flanged Gate Valve
Specifications	Nominal diameter: DN50–300 \| Pressure: PN10/16
Category	Fire Protection Control Valve
Manufacturer	Shandong Lede Machinery Co., Ltd.

Send Inquiry Contact Us

Product Introduction

The NRS (Non-Rising Stem) flanged gate valve features a non-rising stem design that requires less vertical clearance than an OS&Y valve, making it ideal for confined spaces. A visual indicator disc shows open/closed status. Suitable for fire protection and water supply systems.

Features

✓Non-rising stem — compact vertical footprint
✓Visual open/closed indicator disc
✓Flanged end connections
✓Ductile iron body — ASTM A536
✓UL Listed / FM Approved

Technical Data

Parameter	Specification
Nominal Diameter	DN50–600
Nominal Pressure	PN 10 / 16 / 25 / 40
Temperature Range	0–80 °C
Valve Standard	EN1171
Face-to-Face Length	EN558-1 / ISO5752
Flange Standard	EN1092-2 / ISO7005-2 / ASME-B16.42
Grooved Standard	GB 5135.11 / AWWA C606 (optional)
Test Standard	EN12266 / AWWA C515 / GB 5135.6
Body Material	Ductile Iron (ASTM A536)
Stem Material	Stainless Steel 304 / 1Cr17Ni2Cr13
Seat Material	EPDM
Coating	Epoxy powder — food / pharma grade

Dimension Drawing

Z45X-01 (14 Series) — EN558-1 PN 10/16, DN50–600

DN (mm)	Size (in)	PN/Class	L (mm)	H1 (mm)	H (mm)	OD (mm)	OK (mm)	Od (mm)
50	2	PN10/16	150	256	338.5	165	125	22
65	2½	PN10/16	170	256	348.5	185	145	22
80	3	PN10/16	180	273.5	373.5	200	160	22
100	4	PN10/16	190	323.5	433.5	220	180	24
125	5	PN10/16	200	376	501	250	210	28
150	6	PN10/16	210	423.5	566	285	240	28
200	8	PN10	230	530.5	700.5	340	295	32
200	8	PN16	230	530.5	700.5	340	295	32
250	10	PN10	250	645	845	400	350	38
250	10	PN16	250	645	845	400	355	38
300	12	PN10	270	725.5	953	455	400	40
300	12	PN16	270	725.5	953	455	410	40
350	14	PN10	290	814	1066.5	505	460	40
350	14	PN16	290	814	1074	520	470	40
400	16	PN10	310	935	1217.5	565	515	44
400	16	PN16	310	935	1225	580	525	44
450	18	PN10	330	1037	1344.5	615	565	50
450	18	PN16	330	1037	1357	640	585	50
500	20	PN10	350	1154	1489	670	620	50
500	20	PN16	350	1154	1511.5	715	650	50
600	24	PN10	390	1318	1708	780	725	50
600	24	PN16	390	1318	1738	840	770	50

Z45X-01 (14 Series) — EN558-1 PN 25/40, DN50–300

DN (mm)	Size (in)	PN/Class	L (mm)	H1 (mm)	H (mm)	OD (mm)	OK (mm)	Od (mm)
50	2	PN25	150	256	338.5	165	125	22
50	2	PN40	150	256	338.5	165	125	22
65	2½	PN25	170	256	348.5	185	145	22
65	2½	PN40	170	256	348.5	185	145	22
80	3	PN25	180	273.5	373.5	200	160	22
80	3	PN40	180	273.5	373.5	200	160	22
100	4	PN25	190	323.5	441	235	190	24
100	4	PN40	190	323.5	441	235	190	24
125	5	PN25	200	376	511	270	220	28
125	5	PN40	200	376	511	270	220	28
150	6	PN25	210	423.5	573.5	300	250	28
150	6	PN40	210	423.5	573.5	300	250	28
200	8	PN25	230	530.5	710.5	360	310	32
200	8	PN40	230	530.5	718	375	320	32
250	10	PN25	250	645	857.5	425	370	36
250	10	PN40	250	645	870	450	385	36
300	12	PN25	270	725.5	968	485	430	40
300	12	PN40	270	725.5	983	515	450	40

Z45X-02 (03 Series, Long Pattern) — PN 10/16, DN50–600

DN (mm)	Size (in)	PN/Class	L (mm)	H1 (mm)	H (mm)	OD (mm)	OK (mm)	Od (mm)
50	2	PN10/16	178	256	338.5	165	125	22
65	2½	PN10/16	190	256	348.5	185	145	22
80	3	PN10/16	203	273.5	373.5	200	160	22
100	4	PN10/16	229	323.5	433.5	220	180	24
125	5	PN10/16	254	376	501	250	210	28
150	6	PN10/16	267	423.5	566	285	240	28
200	8	PN10	292	530.5	700.5	340	295	32
200	8	PN16	292	530.5	700.5	340	295	32
250	10	PN10	330	645	845	400	350	38
250	10	PN16	330	645	845	400	355	38
300	12	PN10	356	725.5	953	455	400	40
300	12	PN16	356	725.5	953	455	410	40
350	14	PN10	381	814	1066.5	505	460	40
350	14	PN16	381	814	1074	520	470	40
400	16	PN10	406	935	1217.5	565	515	44
400	16	PN16	406	935	1225	580	525	44
450	18	PN10	432	1037	1344.5	615	565	50
450	18	PN16	432	1037	1357	640	585	50
500	20	PN10	457	1154	1489	670	620	50
500	20	PN16	457	1154	1511.5	715	650	50
600	24	PN10	508	1318	1708	780	725	50
600	24	PN16	508	1318	1738	840	770	50

Z45X-02 (03 Series, Long Pattern) — PN 25/40, DN50–300

DN (mm)	Size (in)	PN/Class	L (mm)	H1 (mm)	H (mm)	OD (mm)	OK (mm)	Od (mm)
50	2	PN25	178	256	338.5	165	125	22
50	2	PN40	178	256	338.5	165	125	22
65	2½	PN25	190	256	348.5	185	145	22
65	2½	PN40	190	256	348.5	185	145	22
80	3	PN25	203	273.5	373.5	200	160	22
80	3	PN40	203	273.5	373.5	200	160	22
100	4	PN25	229	323.5	441	235	190	24
100	4	PN40	229	323.5	441	235	190	24
125	5	PN25	254	376	511	270	220	28
125	5	PN40	254	376	511	270	220	28
150	6	PN25	267	423.5	573.5	300	250	28
150	6	PN40	267	423.5	573.5	300	250	28
200	8	PN25	292	530.5	710.5	360	310	32
200	8	PN40	292	530.5	718	375	320	32
250	10	PN25	330	645	857.5	425	370	36
250	10	PN40	330	645	870	450	385	36
300	12	PN25	356	725.5	968	485	430	40
300	12	PN40	356	725.5	983	515	450	40

Z45X-03 — AWWA C515 Class 150/300, DN50–300

DN (mm)	Size (in)	PN/Class	L (mm)	H1 (mm)	H (mm)	OD (mm)	OK (mm)	Od (mm)
50	2	Cl.150	178	256	332	152	120.7	22
50	2	Cl.300	178	256	338.5	165	127	22
65	2½	Cl.150	190	256	345	178	139.7	22
65	2½	Cl.300	190	256	351	190	149.4	22
80	3	Cl.150	203	273.5	369	191	152.4	22
80	3	Cl.300	203	273.5	378.5	210	168	22
100	4	Cl.150	229	323.5	438	229	190.5	24
100	4	Cl.300	229	323.5	450.5	254	200	24
125	5	Cl.150	254	376	503	254	216	28
125	5	Cl.300	254	376	516	280	235	28
150	6	Cl.150	267	423.5	563	279	241.3	28
150	6	Cl.300	267	423.5	582.5	318	269.7	28
200	8	Cl.150	292	530.5	702	343	298.5	32
200	8	Cl.300	292	530.5	721	381	330.2	32
250	10	Cl.150	330	645	848	406	362	36
250	10	Cl.300	330	645	867.5	445	387.4	36
300	12	Cl.150	356	725.5	967	483	431.8	40
300	12	Cl.300	356	725.5	985.5	520	450.9	40

Z45X-04 — AWWA C515 Class 150/300 Post Indicator, DN100–300

DN (mm)	Size (in)	PN/Class	L (mm)	H1 (mm)	H (mm)	OD (mm)	OK (mm)	Od (mm)
100	4	Cl.150	229	332.5	449	229	190.5	305
100	4	Cl.300	229	332.5	461.5	254	200	305
125	5	Cl.150	254	385	512	254	216	305
125	5	Cl.300	254	385	525	280	235	305
150	6	Cl.150	267	432.5	572	279	241.3	305
150	6	Cl.300	267	432.5	591.5	318	269.7	305
200	8	Cl.150	292	527	698.5	343	298.5	305
200	8	Cl.300	292	527	717.5	381	330.2	305
250	10	Cl.150	330	645	848	406	362	305
250	10	Cl.300	330	645	867.5	445	387.4	305
300	12	Cl.150	356	722	963.5	483	431.8	305
300	12	Cl.300	356	722	982	520	450.9	305
